CB210/01
- 2HP
- 1.5Kw
- Flow rate: 10~140L/Min
- H: 56.9~34m
CB400/01
- 4HP
- 3Kw
- Flow rate: 25~200L/Min
- H: 63.6~43.9m

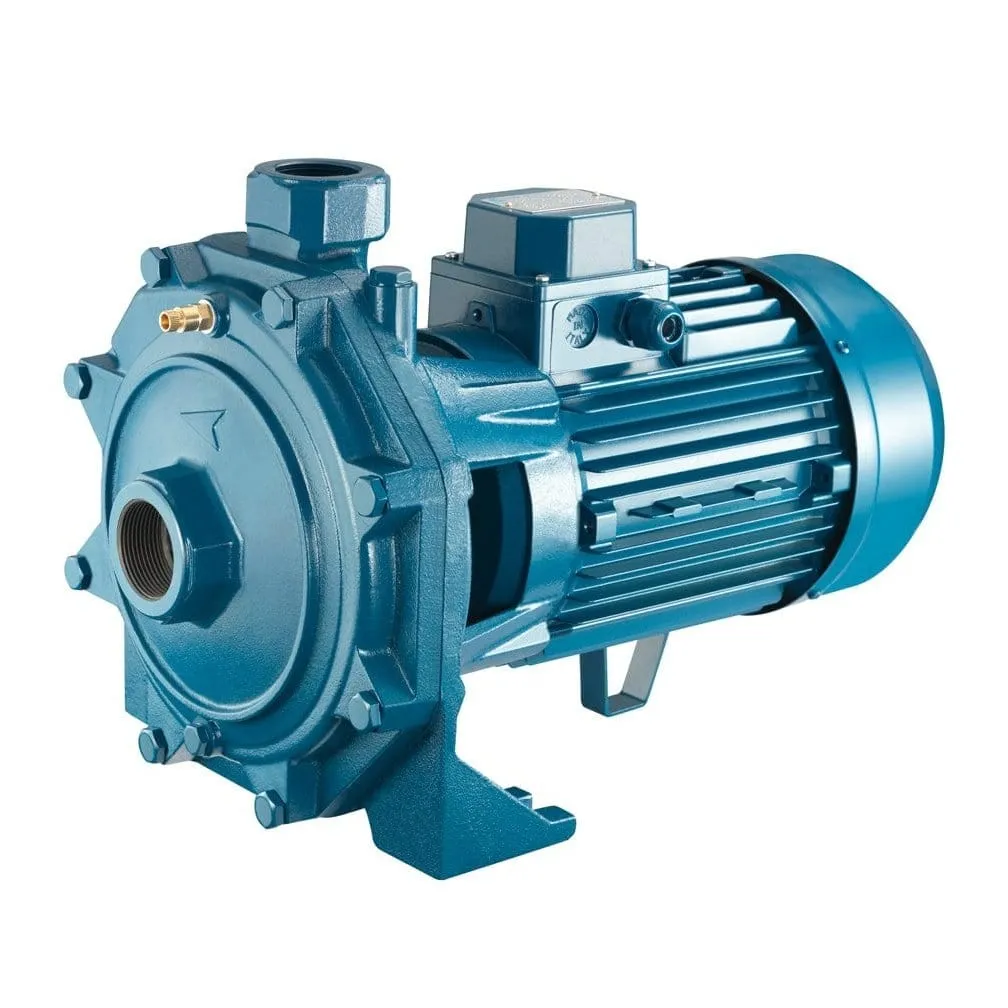

Two impeller centrifugal pump to build pressurization systems for civil and industrial plants; the two opposed impellers guarantee high head with good delivery.
| CONSTRUCTION FEATURES | |
|---|---|
| Pump body | cast iron |
| Motor bracket | cast iron |
| Impeller | brass or noryl® (CB100~900), brass (CB800~1500) |
| Mechanical seal | ceramic-graphite |
| Motor shaft | stainless steel AISI 304, stainless steel AISI 416 (CB100) |
| Liquid temperature | noryl® impeller: 0 - 50 °C, brass impeller: 0 - 90 °C |
| Operating pressure | max 6 bar (CB100), max 11 bar (CB160~1500) |
| Motor | |
|---|---|
| 2 poles induction motor | 1~ 230V-50Hz 3~ 230/400V-50Hz P≤ 4kW 3~ 400/690V-50Hz P> 4kW |
| Insulation class | F |
| Protection degree | IPX4 IPX5 (CB800~1500) |
