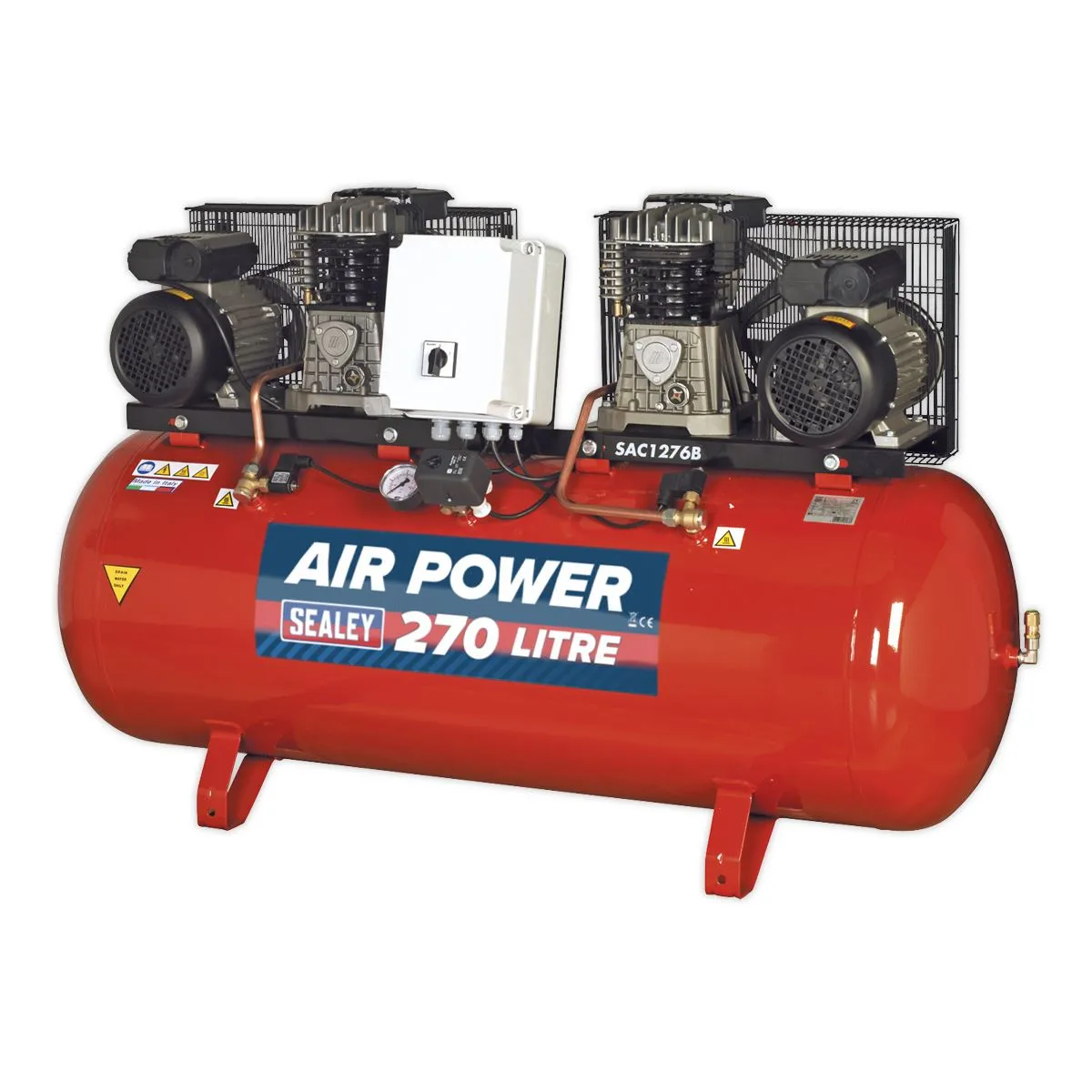

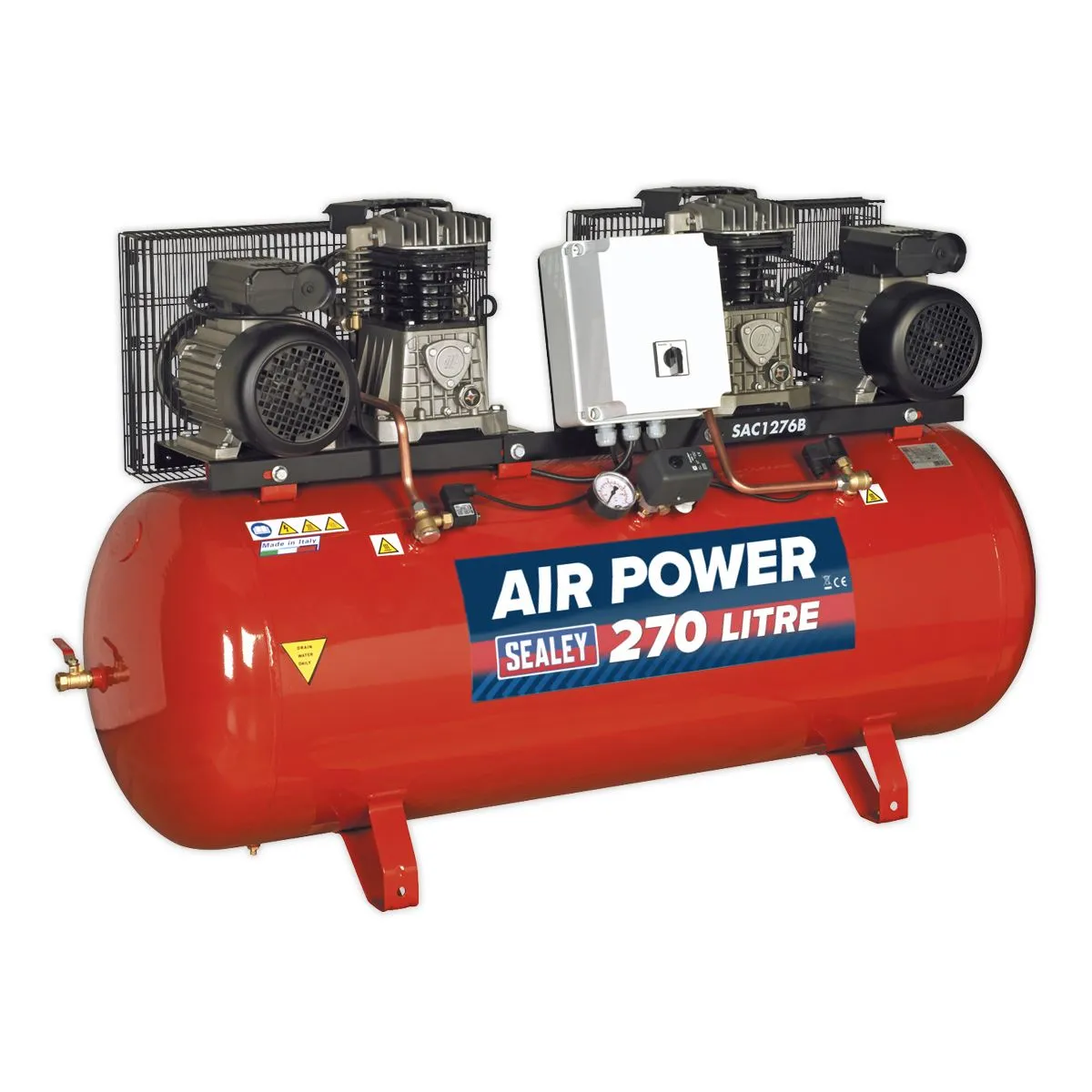

Sealey 270L Belt Drive Air Compressor with Cast Cylinders 2 x 3hp

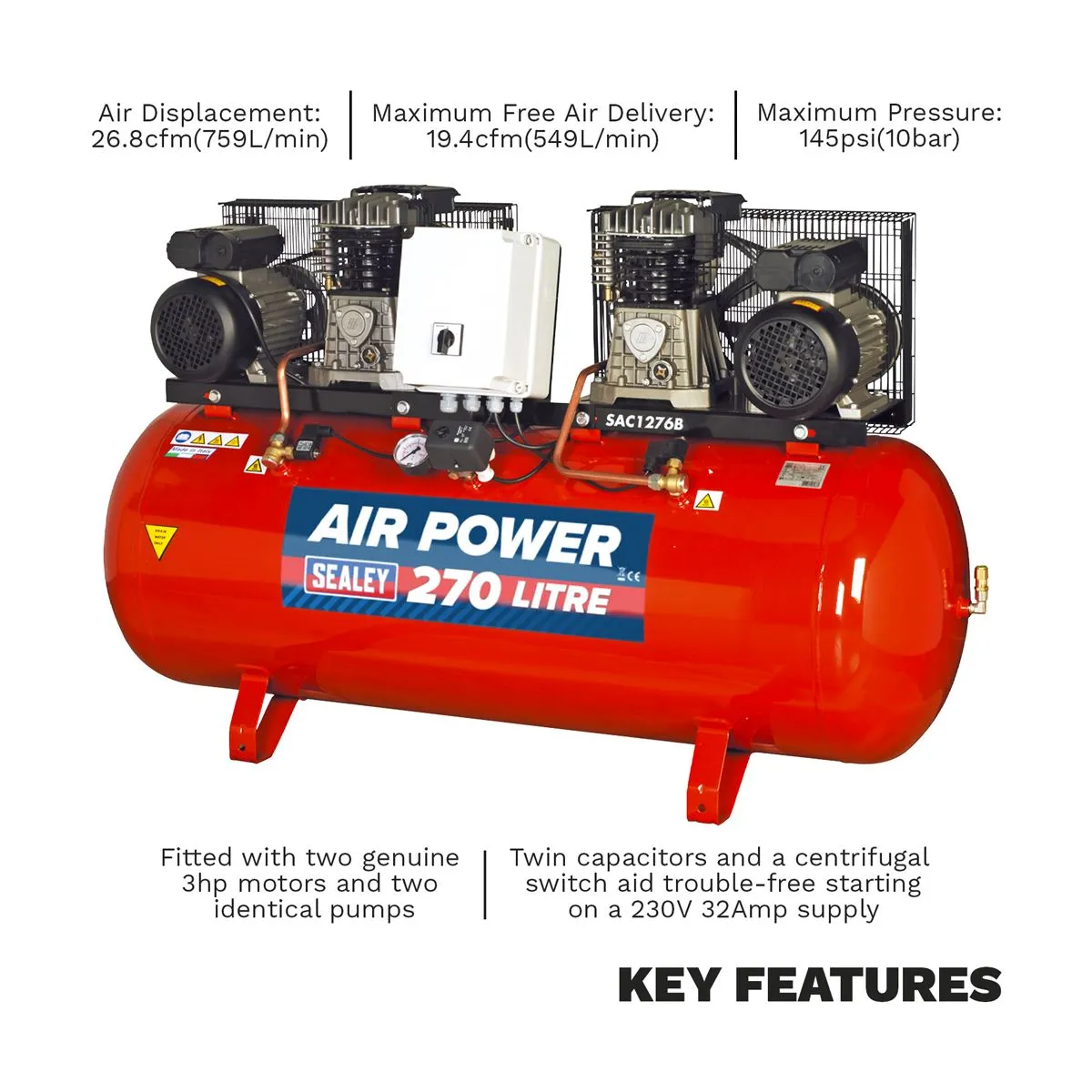

Air Displacement: 26.8cfm(759L/min).
Maximum Free Air Delivery: 19.4cfm(549L/min).
Maximum Pressure: 145psi(10bar).
High output unit suitable for the professional workshop.
Fitted with two genuine 3hp motors and two identical pumps.
Twin capacitors and a centrifugal switch aid trouble-free starting on a 230V 32Amp supply.

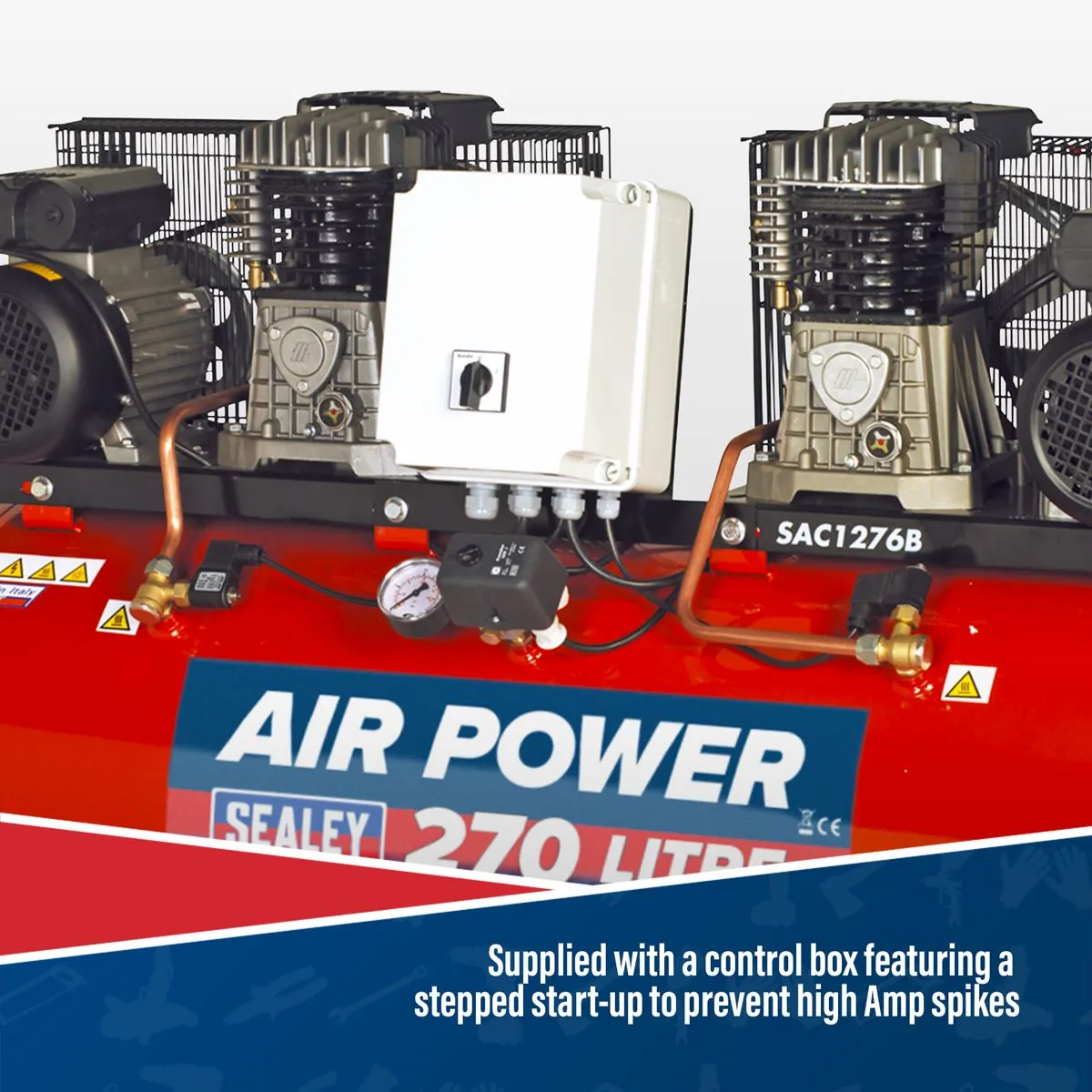

This unit is supplied with a control box featuring a stepped start up to prevent high Amp spikes.

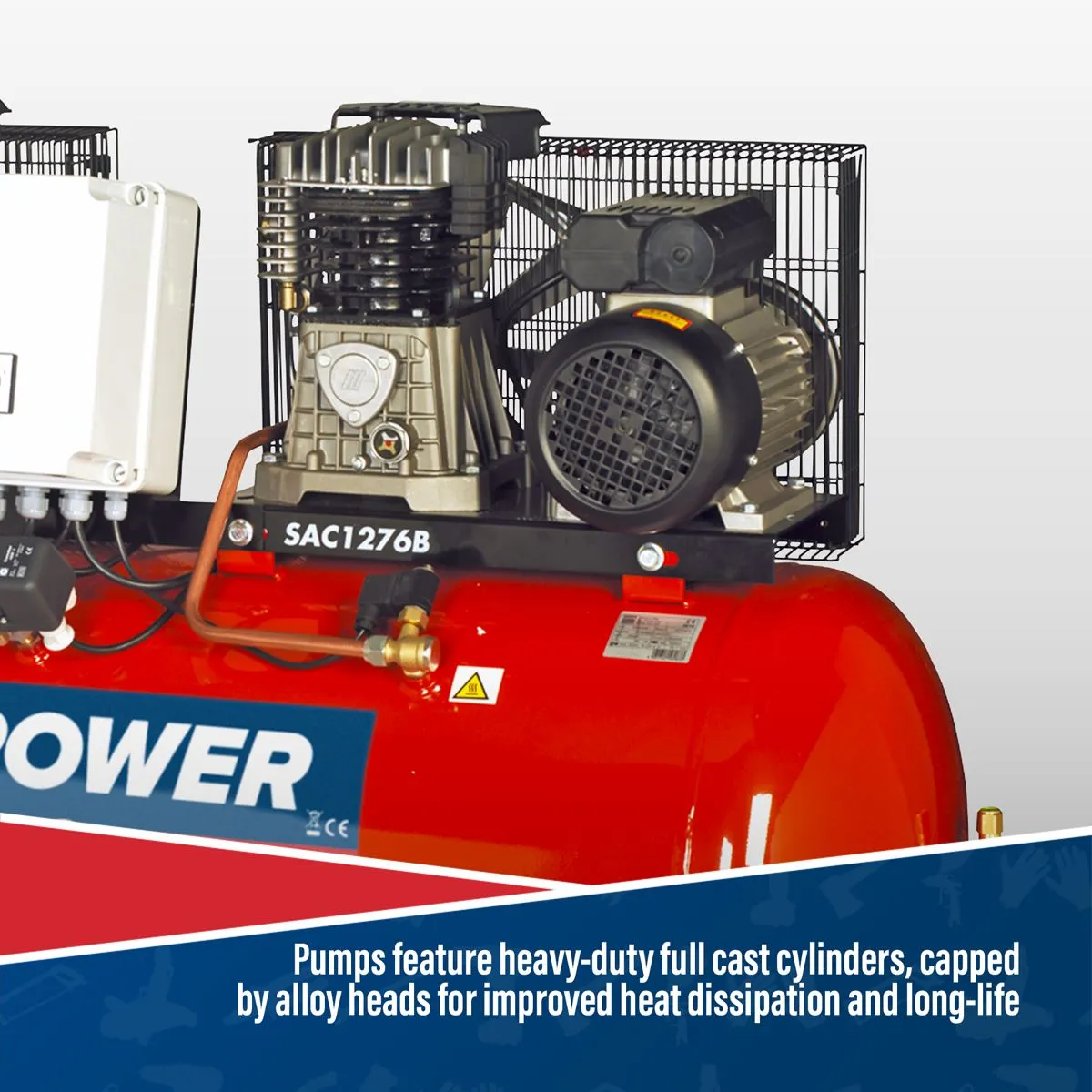

Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

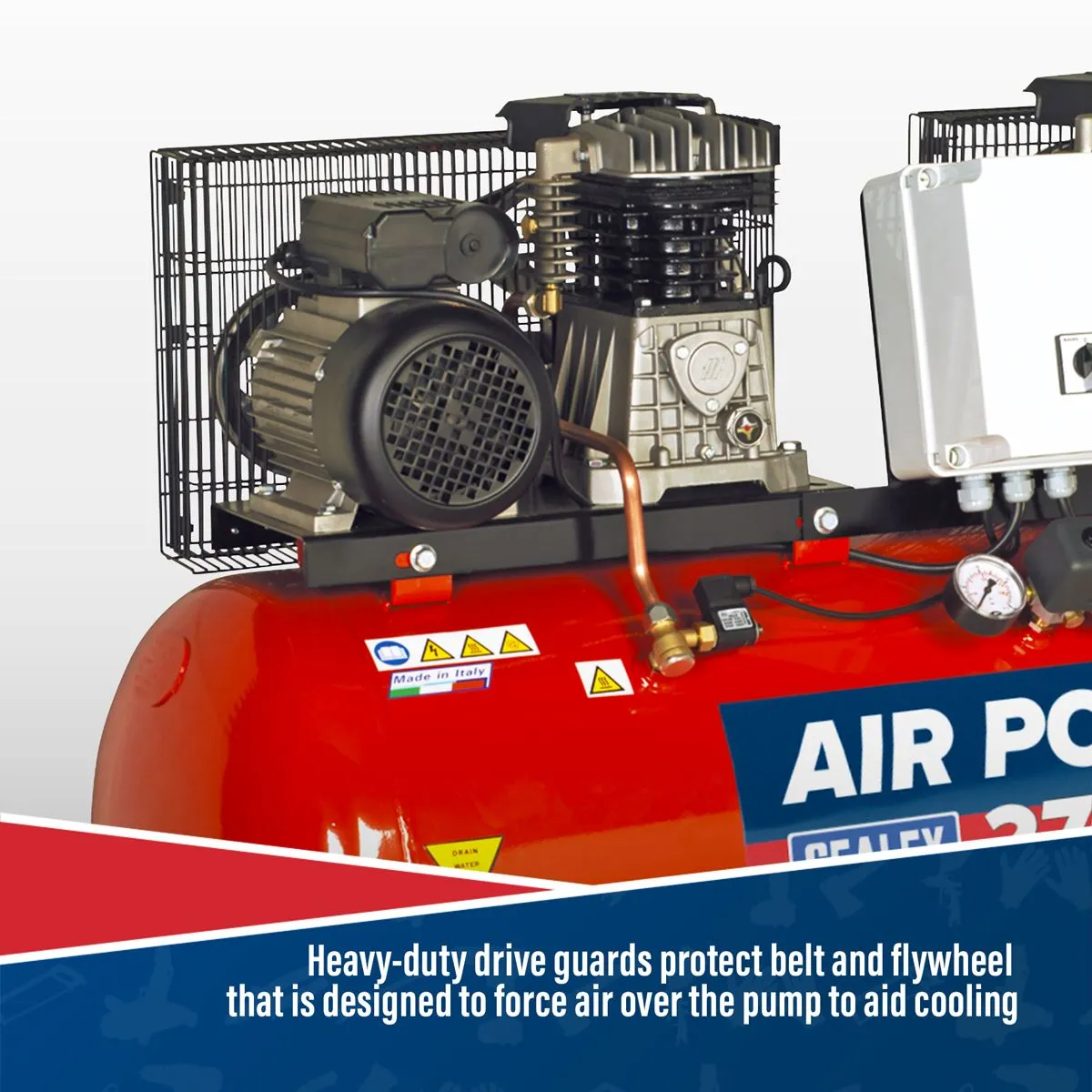

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SAC1276B
- Air Displacement cfm(L/min): 26.8(759)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 19.4(549)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 32A
- Motor Output: 3hp (x2)
- Nett Weight: 138kg
- Oil Capacity: 2 x 0.45L
- Outlet: 3/4"BSP Female Tap
- Phase: 1ph
- Receiver Capacity: 270L
- Size (W x D x H): 1550 x 540 x 935mm
- Speed: 1636rpm
- Supply: 230V/32A
Catalogue Page: Page 780
Downloadable Files:
- Instructions:
- Material Safety Data Sheet:
- Parts Diagram:
