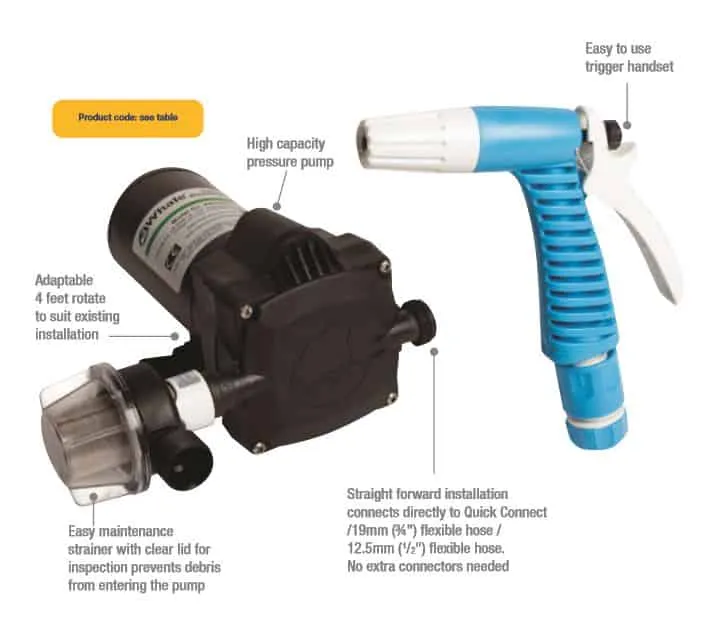

The Whale WD1815 Pump and Gun Washdown Kit includes pre-strainer/filter that pivots to suit plumbing direction. Whale electric galley pump range includes models with the very latest electronic technology. All pumps are manufactured from only highest quality inhouse moulded parts and robust motors.
For more than a decade we have refined our pressure pump designs to ensure long term reliability and efficient performance.
Features
- Suitable for use with saltwater
- Pump and trigger handset in one easy fit kit
- Delivers high pressure targeted flow
- Wash down application in 12 or 24 volts
- Capacity of 18 litres per minute
- Universal mounting feet arrangement
- Suitable for use with fresh or saltwater
- Smooth constant flow
- Can be run dry without damage
- Extra protection and safety with wires and pressure switch housed internally
- Self priming up to three metres
- Aluminium motor housing
- Run indicator wire allows tell tale light and/or buzzer to operate remotely
Trigger
- Adjustable jet- Lock/unlock lever to conserve water
- Comfortable trigger design
- Simple push in hose fittings with dry decoupling valve
Pump
- High pressure pump – smooth constant flow- Trigger handset with adjustable jet and lockable lever.
- Self-priming up to 3 m (10 ft)
- Smooth constant flow- pump head contains 4 diaphragms
- Internal pressure switch IP65
- Extra protection and safety with wires and pressure switch housed internally
- Pump’s universal mounting arrangement fits any existing installation
- Suitable for use with saltwater and freshwater
- Reliability – Runs dry without damage
Specifications
- Volts: 12
- Open Flow (IM): 18
- Max. Head (m): 30
- Lift (m): 3
- Cut Out Pressure: 3bar 45 PSI
- Male Thread: 3/4 / 19 mm
- Accessories: 133201 Deck wash nozzle complete
